Zehntner ZRM 6006 Marking Retroreflection RL-Qd
Leading retroreflectometer factory for pavement markings, road signs & reflective cloths
Application
- Determination of night visibility (RL) of road and airport markings
- Determination of day visibility (Qd) of road and airport markings
- Use on all types of road and airport markings
- Field and laboratory use
- Quality assessment
Product Summary
1. Introduction:

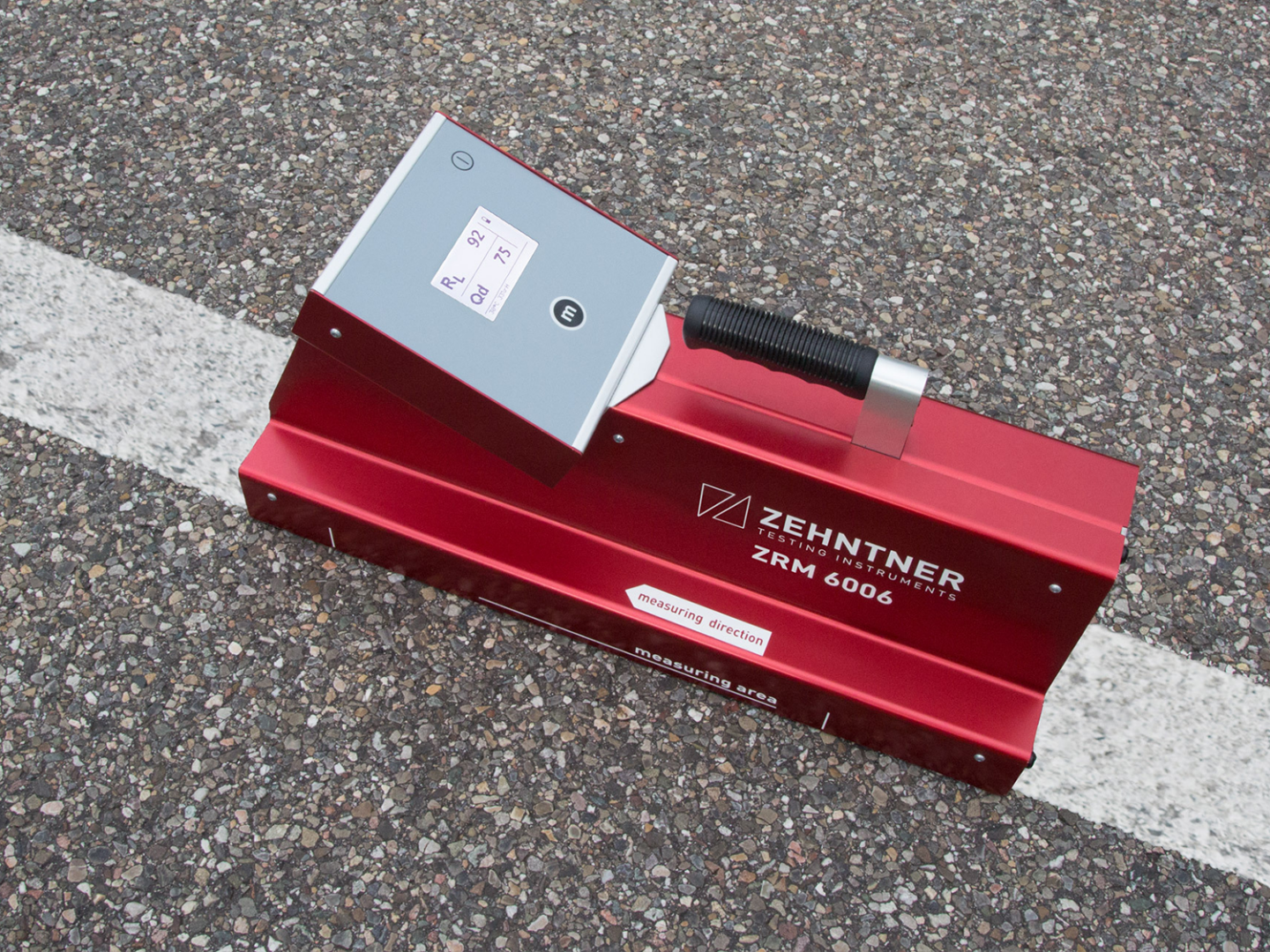

Zehntner ZRM 6006 Marking Retroreflection is a portable retroreflectometer for pavement markings. It can measure both night visibility (RL) and day visibility (Qd) with the touch of a button. It is suitable for road traffic authorities, road labs, project acceptance agency, road marking paint factories, road marking contractors, etc.
2. Advantages:
- Ease of use: Entry-level device, ideal for measuring night visibility (RL) and day visibility (Qd) of road markings and ambient temperature with a touch of a button
- Versatility: Ultrafast retroreflection measurement (RL and Qd) in about 2 seconds for all types of road markings
- Efficiency: Use in dry or wet condition, day or night, on the road or in the laboratory
3. Standards:
- ASTM E1710-18
- ASTM E2177
- ASTM E2302
- CIE 54.2
- EN 13197
- EN 1436
Tech Specs
| Model: | Proceq/Zehntner ZRM 6006 |
|---|---|
| Display: | Transflective luminous LCD display with LED backlightn |
| Memory： | None |
| Measurement Modes： | RL dry (night visibility) |
| Measuring Area： | (WxL): 52mm x 218mm (2.05" x 8.6") |
| Measuring Range： | RL: 0 – 4’000 mcd•m-2•lx-1 |
| Measuring Accuracy： | Repeatability ± 2 % |
| Observation Angle： | EN 1436 & ASTM E2302: 2.29° |
| Illumination Angle： | RL: EN 1436: 1.24° |
| Weight： | 6.4kg (14.1 lbs) |
