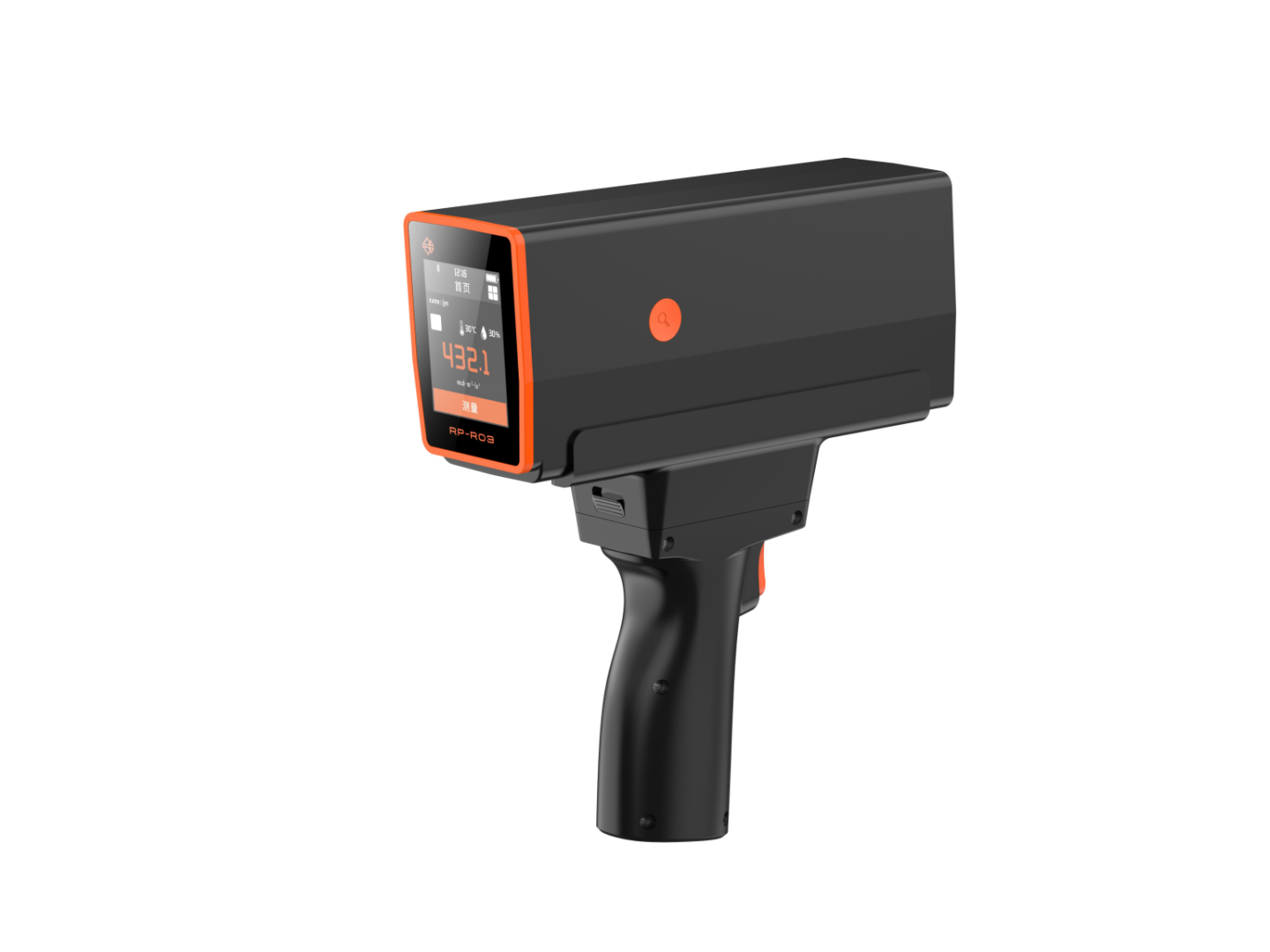

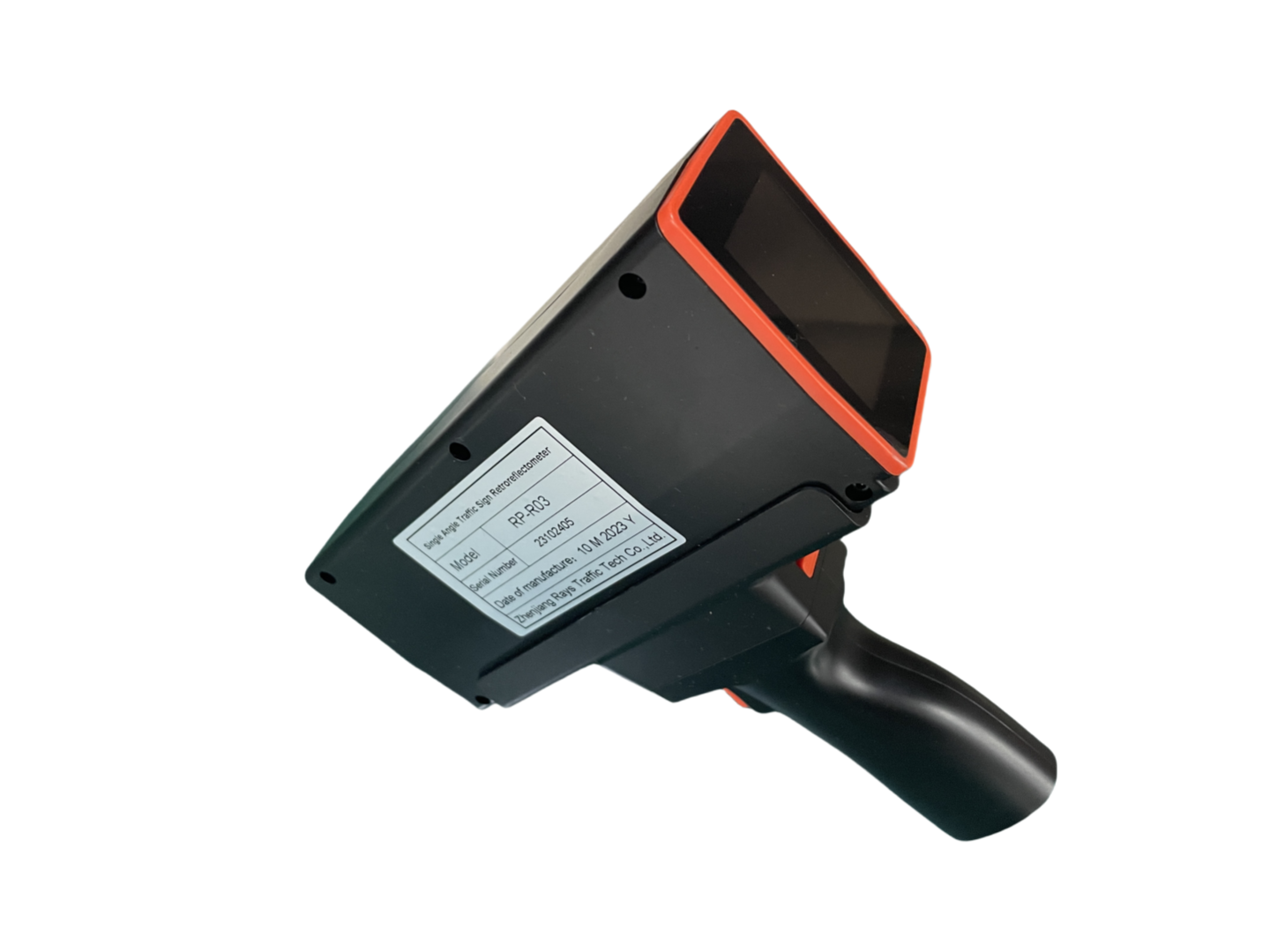

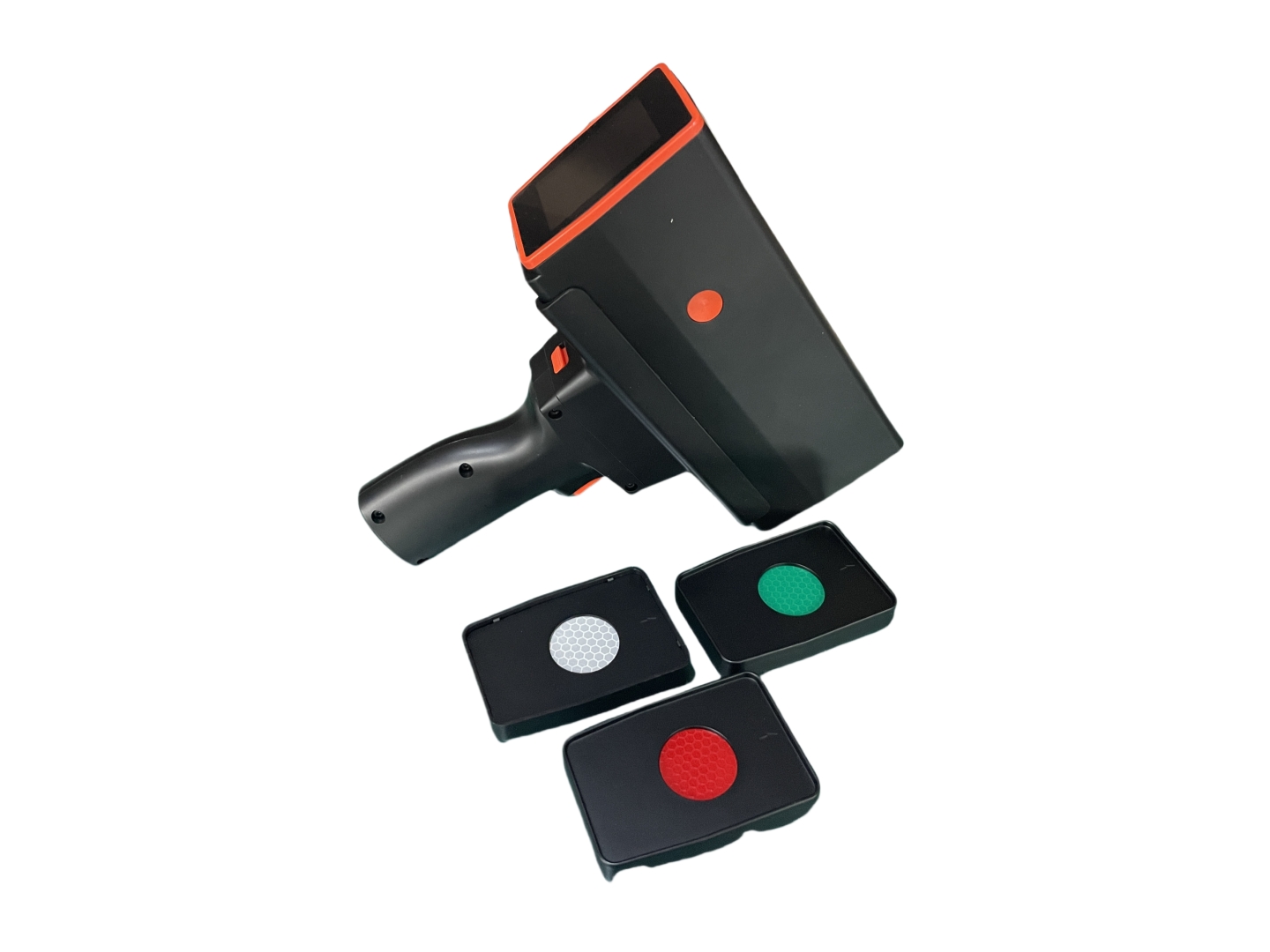

RP-R03 Single-angle Road Sign Retroreflectometer
Leading retroreflectometer factory for pavement markings, road signs & reflective cloths
Application
- Measurement of coefficient of retroreflection RA and R’ at 0.2° observation angle
- Road sign construction sites and laboratory use
- Reflective sign factories production quality control
- Road authories projects inspection
Product Summary
1. Introduction:
RP-R03 Single Angle Road Sign Retroreflectormeter is visibility measurement of coefficient of retroreflection RA and R’. It is used for measuring retroreflection of traffic signs and reflective materials. RP-R03 comes with 0.2° observation angle and -4° entrance angle. RP-R03 is suitable for road traffic authorities, optical labs, road test agency, road sign contractors. Traffic sign, safety closing and reflective materials manufacturers also need retroreflectormeter to check their products quality.
2. Advantages:
- Easy visible touch screen in bright sunlight site and laboratory
- Single angle road signs & reflective materials retroreflectometer
- Calibrate all angles by one button

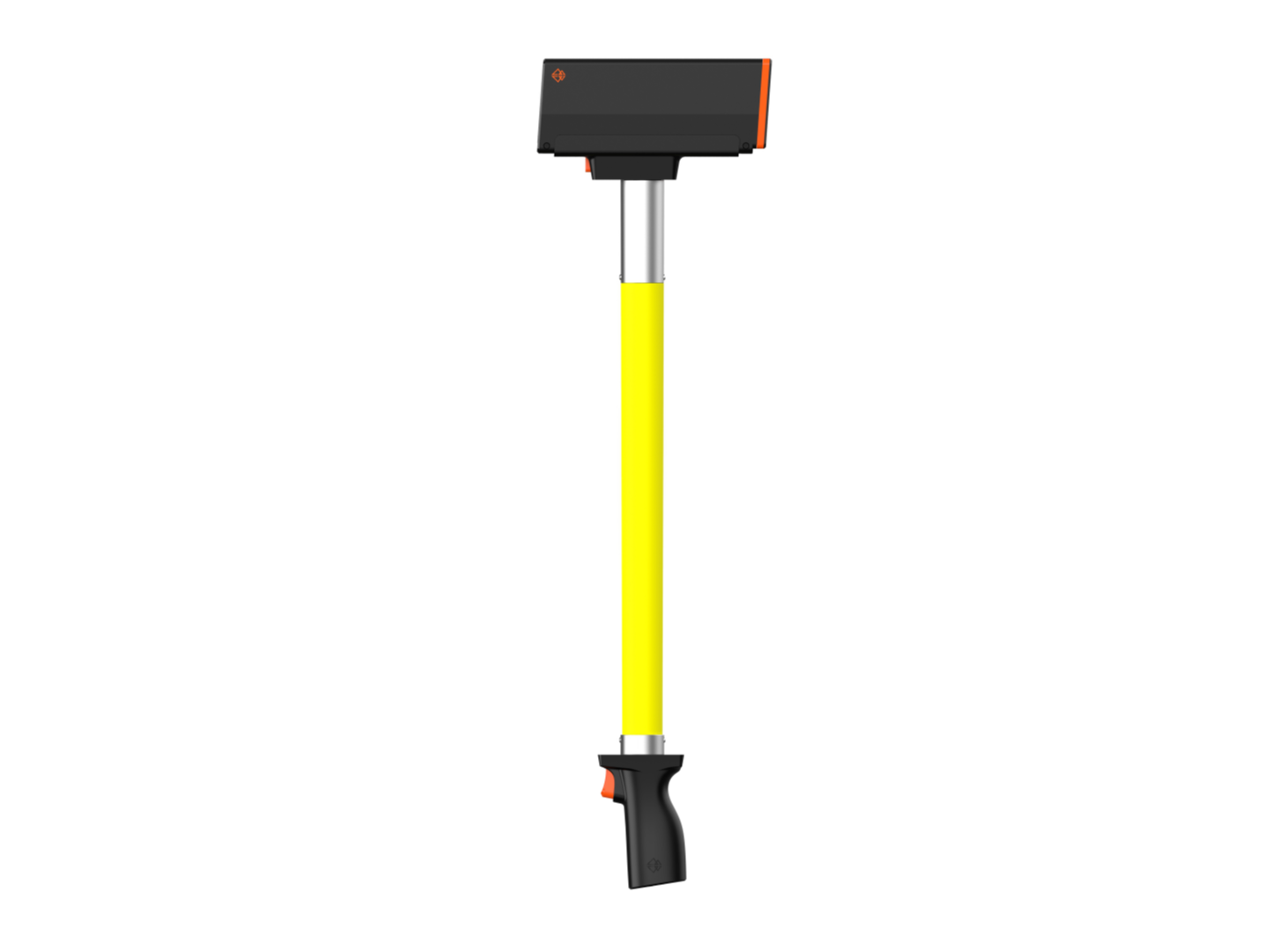

- 1-3m blue-tooth handle item optional
- Portable blue tooth printer optional
3. Standards:
RP-R03 Road Sign Retroreflectometer is designed and produced based on national standard test mathod as below:
- ASTM E1709 Standard Test Method for Measurement of Retroreflective Signs Using a Portable Retroreflectometer at a 0.2 Degree Observation Angle
Tech Specs
| Model: | RP-R03 |
|---|---|
| Display: | 3.7’’ touch screen, 1-3m blue-tooth handle item(optional) |
| Light source color: | 2856±50K(CIE A light source) |
| Memory: | over 100,000 data |
| Measuring Range: | 0 – 4000 cd·lx-1·m-2 |
| Observation Angle: | 0.2° |
| Entrance Angle: | -4° |
| Operating Temperature: | -15℃~+60℃ |
| Operating humidity: | <98%, no frost |
| Printer: | Portable blue-tooth printer(optional) |
| Language: | Chinese, English(optional) |
| GPS: | GPS (optional) |
| Battery: | Working time>30h after charging, 3.7V/4.4Ah, adaptor DC 5V |
| Dimensions(L*W*H): | 200mm*75mm*55mm |
| Weight: | N.W. 0.45KG, G.W. 3.6kg |
| Warranty: | 12months |
